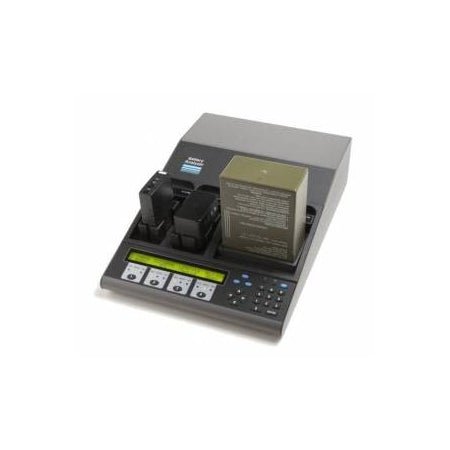

4-Bay Battery Analyzer/Conditioner for DPH, GPH

What is the CHDPHAZCA4 4-Bay Battery Analyzer?

The CHDPHAZCA4 is a 4-bay battery conditioner/analyzer for Bendix King legacy series batteries. The battery analyzer is more than a programmable power supply, to charge and discharge batteries, it analyzes the condition of a battery and provides intelligence to safely service them. This analyzer does not require multiple adapters for each battery chemistry type.

Battery Reactivation

Li-ion battery packs often fail due to over-discharge. At 2.8V/cell, the protection circuit opens, and the battery appears dead but the CHDPHAZCA4 activates the circuit and brings the battery back to life. Capacity is the leading indicator of a good or bad battery. The Analyzer is reading internal resistance to estimate battery health and if it is no longer reliable. As modern Li-ion keeps a low resistance, the new electro-chemical method of testing batteries is 90%-95% more accurate. By analyzing and conditioning batteries, the end user can expect a significant increase in battery longevity, therefor, saving money that would otherwise been allocated to battery replacement.

Battery Chart Capacity Lifecycle Test

This program performs incoming battery inspection. The CHDPHAZCA4 analyzer also offers dynamic stress tests to examine each battery under different load levels. The program is automated; the software plots and stores the test results which can be downloaded to a computer.

Maintaining Fleet Batteries

The CHDPHAZCA4 has a software, label and handheld scanner option that simplifies fleet service by creating a permanent ID number to each battery which can be affixed to the batteries. The label printer generates the labels with a bar code to identify and track each battery through its life. To service a battery, simply scan the label and insert the battery into the analyzer. The software will then configure, and the analyzer displays the battery history that includes age and past service reports. This solution is a simple yet powerful for a PC-interface to control and monitor the CHDPHAZCA4 battery analyzer. The database holds over 3,000 batteries with a mouse click or bar code swipe that configures an analyzer. The software, label, and handheld scanner are sold separately.

*Allow 6-8 weeks lead time on analyzers, they are custom built to order.

Works with the following Bendix King Radios:

• DPH5102X, DPHX5102X, DPH5102X-CMD
• GPH5102X, GPH5102XP, GPH5102XP-CMD
• EPH Series Radios
• LPH Series Radios
• KX99 Handheld Radio

Why Choose the CHDPHAZCA4 4-Bay Battery Analyzer?

This battery analyzer provides information by reading the internal resistance to find out the condition of the BK technologies legacy series batteries and if they are still a reliable power supply.
